Product Description: Allen-Bradley 1746-P2

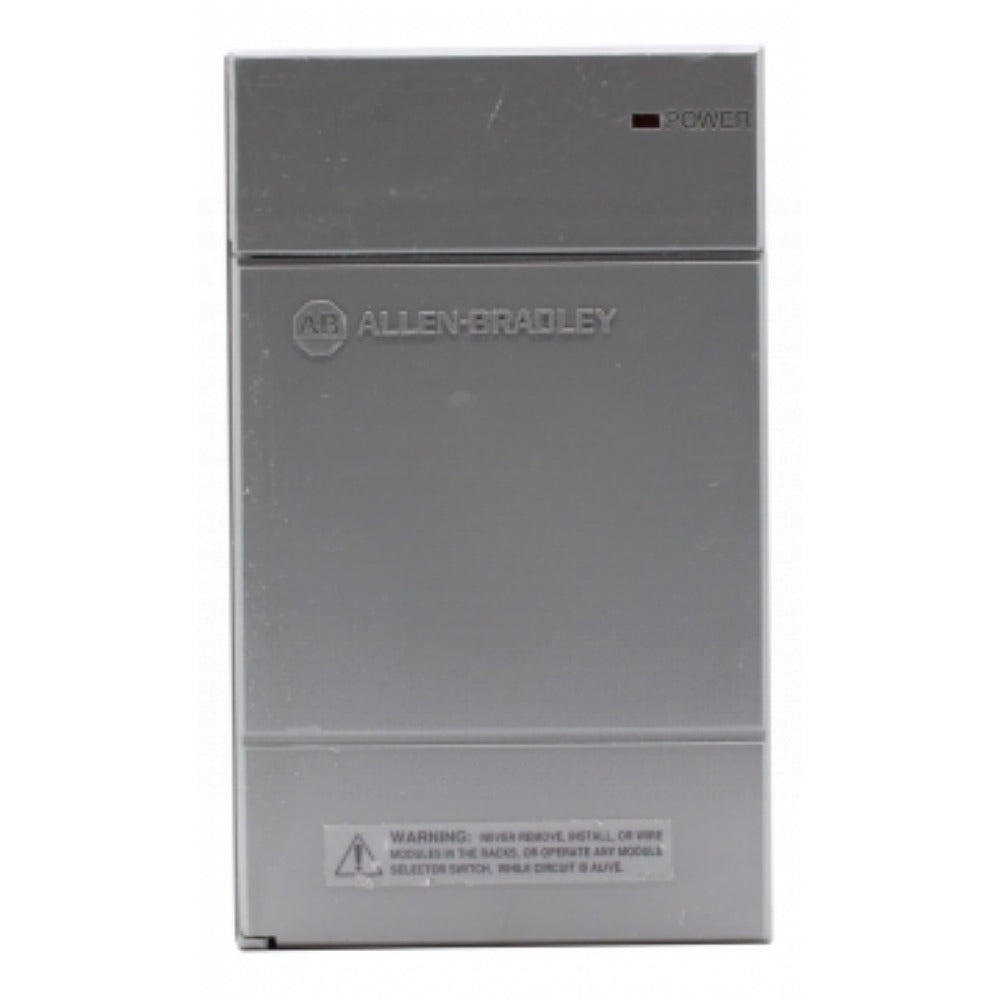

The Allen-Bradley 1746-P2 is a standard AC-input power supply module used in the SLC 500 modular PLC platform. It mounts directly on the left end of a 1746 chassis and provides the required backplane power to operate processor, I/O, and communication modules. Designed for global compatibility, it accepts a wide AC input voltage range and delivers both 5V DC and 24V DC outputs, making it suitable for a broad range of industrial applications.

Key Features

• Accepts 120/240V AC input (auto-selecting)
• Provides regulated 5V DC and 24V DC outputs
• Supplies backplane power for all SLC 500 modules in the chassis
• Compatible with all 1746 series modular chassis (4-slot to 17-slot)
• LED power status indicator for diagnostic visibility
• Includes overload, overvoltage, and short-circuit protection
• Long operational life with robust industrial design

Technical Specifications

• Input Voltage: 85–132V AC or 170–265V AC (47–63 Hz)
• Inrush Current: 20 A max
• Output Voltage:
  • 5V DC @ 5.0 A
• Power Supply Mounting: Left-most slot of the 1746 chassis
• Compatible Chassis: 1746-A4 through 1746-A17
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Certifications: UL Listed, CE, CSA, Class I Div 2, RoHS

Application Areas

• Factory automation and control systems
• OEM machinery requiring AC-powered PLCs
• Process control installations using modular I/O
• Machine-level control panels with global voltage compatibility
• Electrical enclosures where standard AC input is available

Advantages

• Universal AC input supports both 120V and 240V power sources
• Provides ample power for mid to large SLC 500 systems
• Simple installation with direct chassis integration
• Ensures stable and protected power distribution
• Trusted, field-proven solution for industrial environments
