Allen-Bradley | 1769-OA16 | Compact I/O

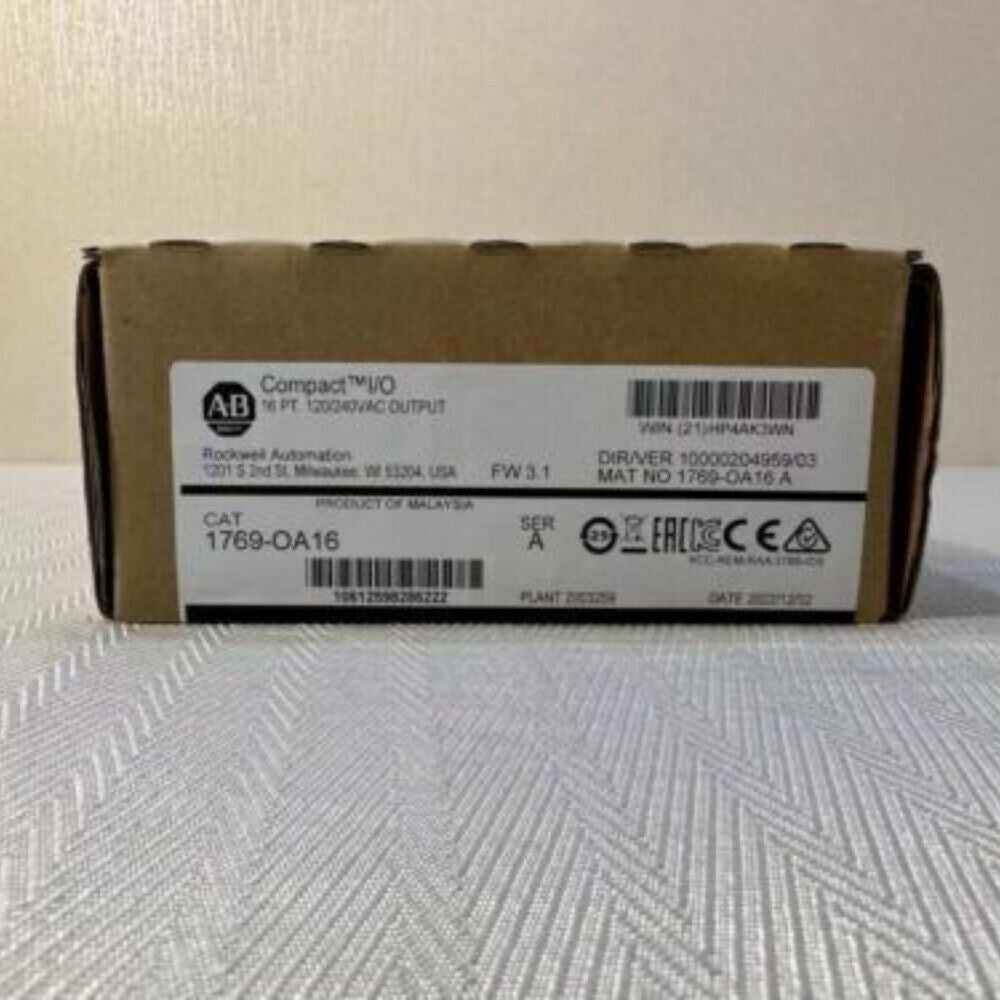

Product Description: Allen-Bradley 1769-OA16

The Allen-Bradley 1769-OA16 is a 16-point digital output module designed for use with CompactLogix and MicroLogix 1500 controllers. It provides AC output switching for controlling 120/240V AC field devices such as pilot lights, motor starters, and relays. The module uses triac-based output circuits suitable for resistive and inductive AC loads in industrial environments.

Key Features

• 16 individually fused AC output channels
• Supports both 120V and 240V AC operation
• Triac outputs for reliable AC switching
• Removable terminal block for easy wiring
• Built-in output status indicators

Technical Specifications

• Number of Outputs: 16
• Output Type: AC Triac (sourcing)
• Operating Voltage Range: 79 to 264V AC
• Output Current: 0.5 A per point, 4.0 A max per module
• Minimum Load Current: 5 mA
• Isolation Voltage: 265V AC (channel-to-system)
• Power Dissipation: 4.8 Watts
• Mounting Type: DIN rail or panel
• Operating Temperature: 0 to 60°C (32 to 140°F)

Application Areas

• Switching of AC-powered relays, indicators, and solenoids
• Industrial machine control systems
• Lighting control in automated processes
• General-purpose AC output control

Advantages

• High- voltage output control in a compact format
• Safe and reliable switching for industrial AC loads
• Efficient integration with CompactLogix and MicroLogix systems
• Fast diagnostics with per-channel LED indicators
• Ideal for applications where AC output is required in a small footprint
