Allen-Bradley | 1762-L24BWA | MicroLogix 1200

Product Description: Allen-Bradley 1762-L24BWA

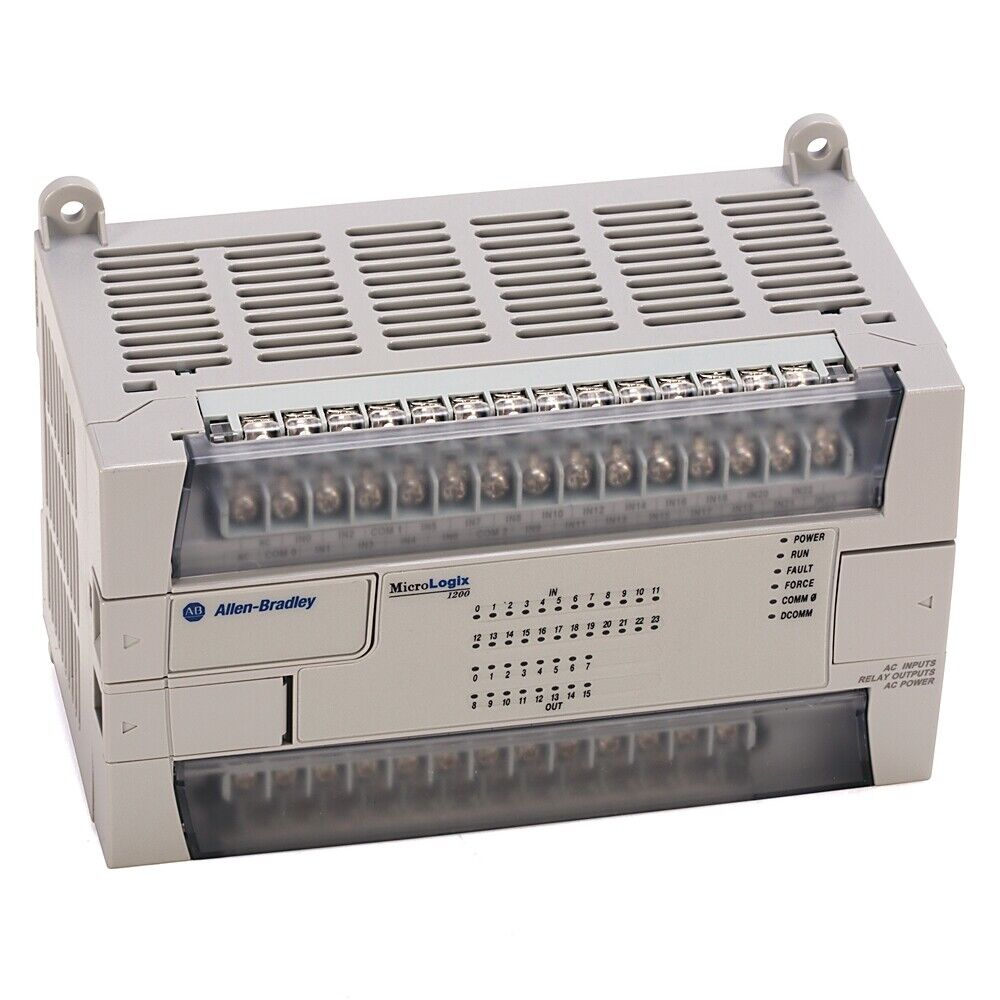

The Allen-Bradley 1762-L24BWA is a MicroLogix 1200 controller with 24 integrated I/O points, combining 14 AC digital inputs and 10 relay outputs. It operates on a 120/240V AC power supply and offers a compact, flexible solution for machine-level automation. This controller supports a wide range of control functions, including real-time clock, high- speed counters, and PID instructions, and is well-suited for OEM and standalone control applications.

Key Features

• 24 onboard I/O points:
  • 14 digital inputs (120V AC)
• Operates on 120/240V AC input power
• Integrated real-time clock
• Supports PID control and high-speed counter functions
• One built-in RS-232/RS-485 combo communication port
• Expandable with up to 6 additional 1762 I/O modules
• Password protection and retentive data support
• User-friendly configuration via RSLogix 500

Technical Specifications

• Input Voltage: 120/240V AC
• Digital Inputs: 14 (AC, 120V nominal)
• Relay Outputs: 10 (mechanical contact)
• Output Voltage Rating: 5–125V DC, 5–265V AC
• Output Current:
  • 2.0 A per point (max), 8.0 A per common
• Program Memory: 8 KB
• Data Memory: 2 KB
• Communication: 1 x RS-232/RS-485 port (DF1, DH-485, Modbus RTU)
• Operating Temperature: 0°C to 55°C
• Mounting: DIN rail
• Dimensions (HxWxD): approx. 90 x 110 x 87 mm
• Certifications: UL Listed, CSA, CE, RoHS, Class I Div 2

Application Areas

• General-purpose industrial machinery
• Pump and fan control systems
• HVAC and building automation
• Packaging and labeling equipment
• Standalone or distributed OEM automation solutions

Advantages

• AC-powered for compatibility with standard control panel voltages
• Relay outputs provide flexible switching for AC or DC loads
• Built-in real-time clock supports time-based control logic
• Modular expansion allows I/O scalability
• Cost-effective, compact PLC solution for a wide range of applications
