Product Description: Allen-Bradley 1762-IQ8OW6

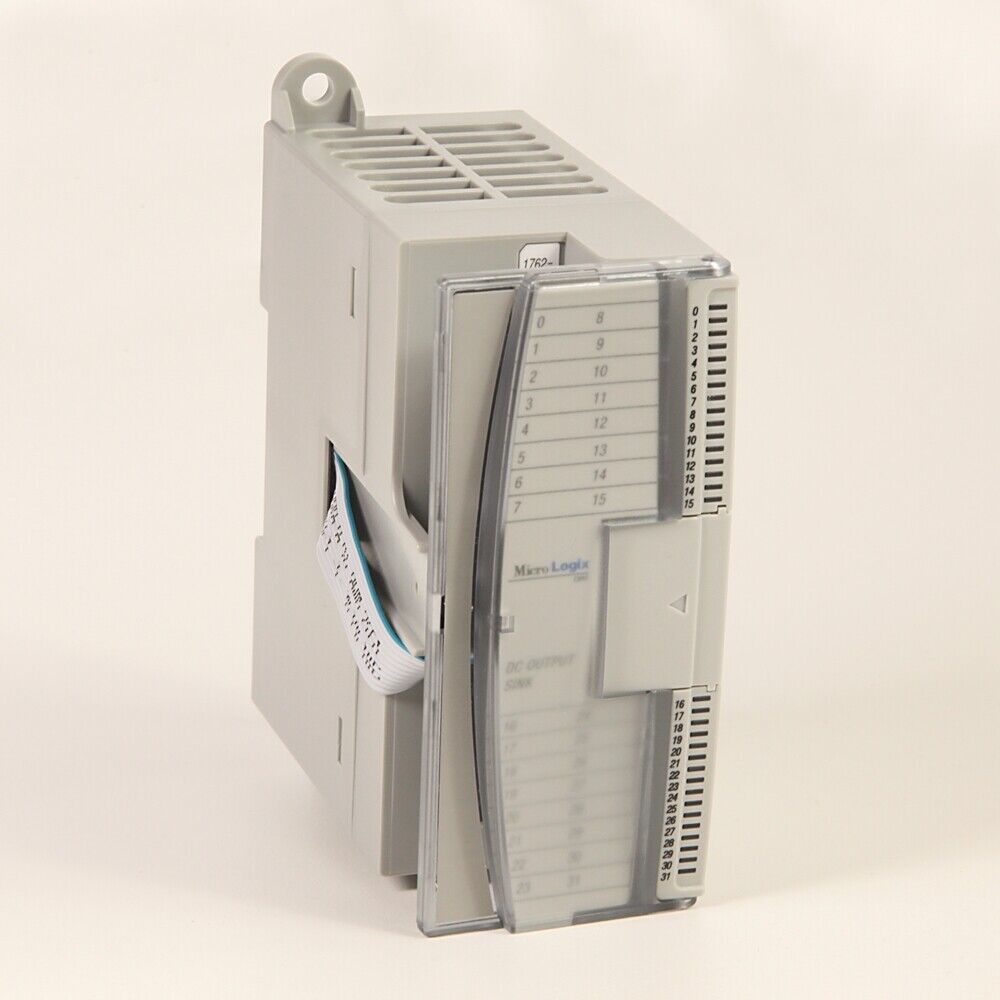

The Allen-Bradley 1762-IQ8OW6 is a MicroLogix 1200 combination I/O module , featuring 8 digital inputs (24V DC, sinking/sourcing) and 6 relay outputs. This space-saving module is part of the MicroLogix 1200 expansion I/O family , offering compact, reliable, and versatile I/O control for small- to mid-sized automation systems. Designed for applications where both digital input monitoring and relay output control are needed in one module, the 1762-IQ8OW6 is ideal for use in machine control, packaging, and building automation systems.

Product Type

• Combination Digital I/O Module
• Series: MicroLogix 1200
• Inputs: 8 (24V DC, sink/source)
• Outputs: 6 (relay)

Key Features

• 8 digital inputs: 24V DC (selectable sink or source)
• 6 relay outputs: Form A (SPST), individually isolated
• Relay output ratings suitable for AC or DC loads
• LED indicators for input and output status
• DIN rail mountable for easy installation
• Compact design minimizes panel space usage
• Plug-in style terminals for fast wiring
• Compatible with MicroLogix 1200 base units

Technical Specifications

• Input Type: Digital (sink/source)
• Input Voltage Range: 10–30V DC
• Input Current: 6 mA at 24V DC (typical)
• Number of Inputs: 8
• Input Delay Time: 8 ms ON / 8 ms OFF (nominal)
• Output Type: Relay (mechanical)
• Number of Outputs: 6
• Relay Output Ratings:
• 2.0 A @ 30V DC / 2.0 A @ 250V AC (resistive)
• 1.2 A @ 120V AC (inductive), 0.5 A @ 24V DC (inductive)
• Output Response Time: 10 ms (typical)
• Backplane Current (5V): 115 mA
• Backplane Current (24V): 100 mA
• Isolation Voltage: 1500V AC for 1 minute
• Mounting: DIN rail
• Operating Temperature: 0°C to +55°C
• Certifications: cULus, CE, C-Tick

Application Areas

• Small machine control
• Building automation systems
• Material handling and packaging machines
• Conveyor systems
• Process skids and OEM panels

Advantages

• Combines input and output functionality in one unit
• Relay outputs can switch both AC and DC loads
• Compact form factor reduces control cabinet size
• Integrated status LEDs simplify diagnostics
• Flexible mounting and wiring options
