Allen-Bradley | 1762-IQ16 | MicroLogix 1200 (1762 Series)

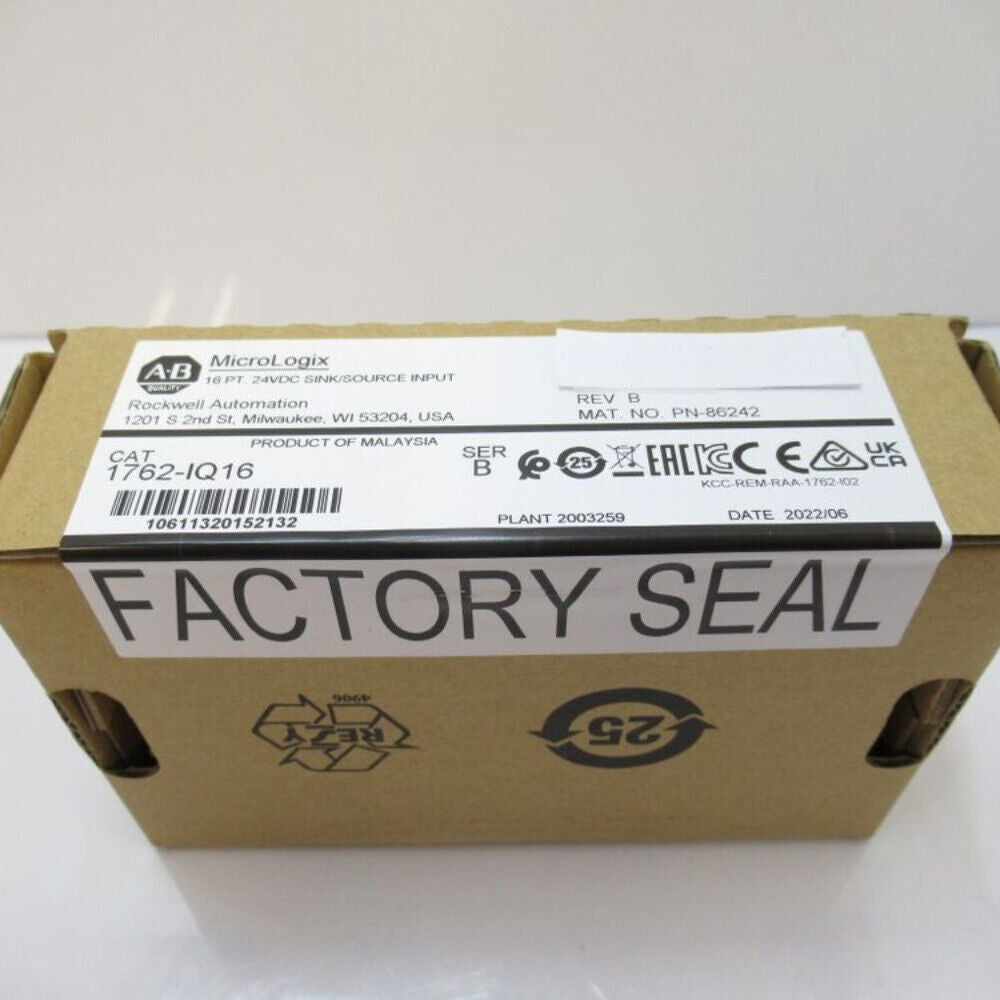

Product Description: Allen-Bradley 1762-IQ16

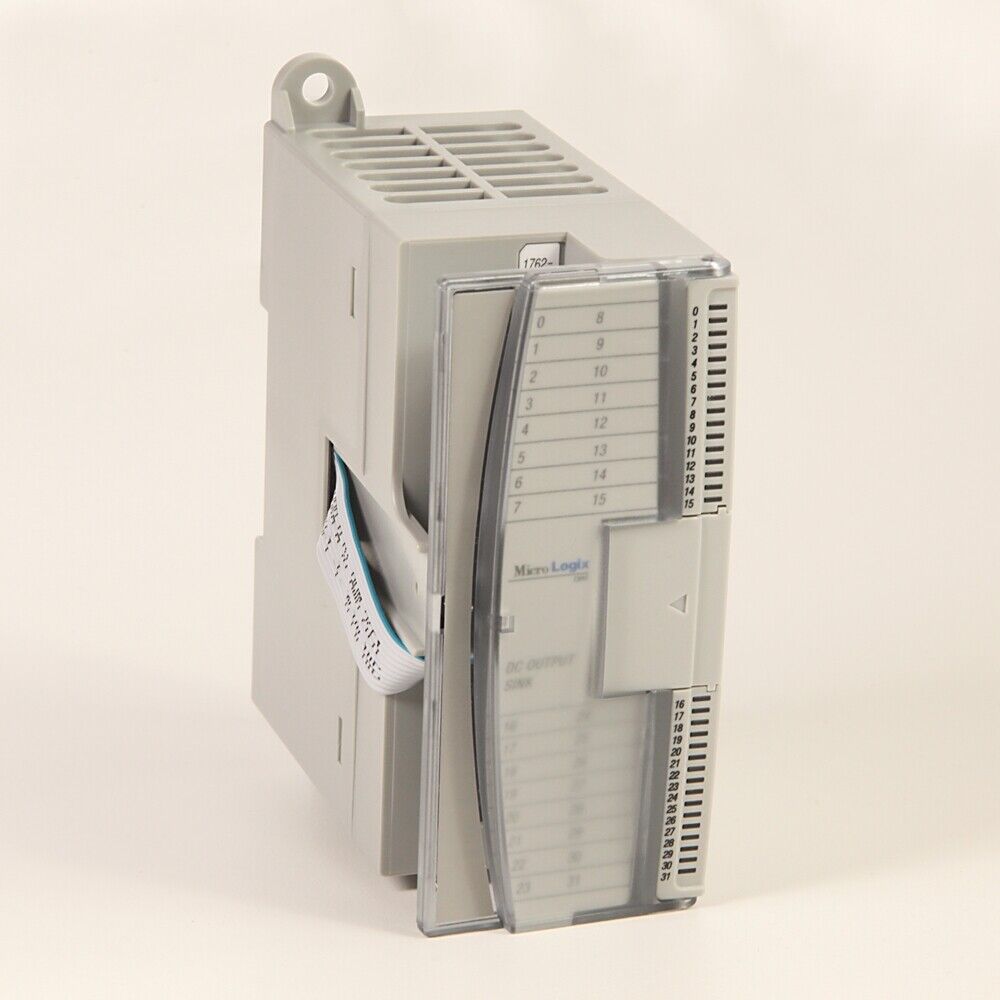

The Allen-Bradley 1762-IQ16 is a 16-channel digital input module designed for use with MicroLogix 1100, 1200, and 1400 controllers. It supports both sinking (NPN) and sourcing (PNP) 24V DC input devices, offering flexibility in wiring and application design. This high- density input module is ideal for monitoring proximity switches, pushbuttons, limit switches, and other field sensors in compact industrial control systems.

Key Features

• 16 digital input channels
• Accepts 24V DC sink or source wiring
• LED indicators for per-channel status monitoring
• High- density I/O in a compact form factor
• Removable terminal block for simplified installation and maintenance
• Compatible with MicroLogix 1100, 1200, and 1400 controllers
• No configuration required—plug and play recognition by the controller

Technical Specifications

• Number of Inputs: 16
• Input Type: DC Sink/Source (software selectable in controller)
• Input Voltage Range: 10–30V DC (24V DC nominal)
• On-State Voltage: ≥10V DC
• Off-State Voltage: ≤5V DC
• On-State Current: ≥2.0 mA
• Off-State Current: ≤1.5 mA
• Isolation Voltage: 1500V AC (field to backplane)
• Backplane Current Draw:
  • 120 mA @ 5V DC
• Operating Temperature: 0°C to 55°C
• Mounting: DIN rail
• Certifications: UL Listed, CE, CSA, RoHS, Class I Div 2

Application Areas

• Monitoring switches, sensors, and contact inputs
• OEM machine control panels
• Packaging and labeling systems
• Conveyor and assembly line feedback inputs
• High I/O count systems in compact enclosures

Advantages

• High channel density reduces overall system footprint
• Supports both NPN and PNP devices for flexible integration
• Easy troubleshooting with per-channel LED indicators
• Seamless plug-and-play integration with MicroLogix PLCs
• Reliable and efficient DC signal acquisition for discrete input control
